Replacement Winder Mechanism for Harrod Sport Tennis Posts

This replacement tennis post winder (sometimes referred to as BRS032) is only compatible with Harrod Sports Square Steel and Aluminium Tennis Posts (product refs: TEN-017, TEN-232, TEN-560, TEN-028 and TEN-117).

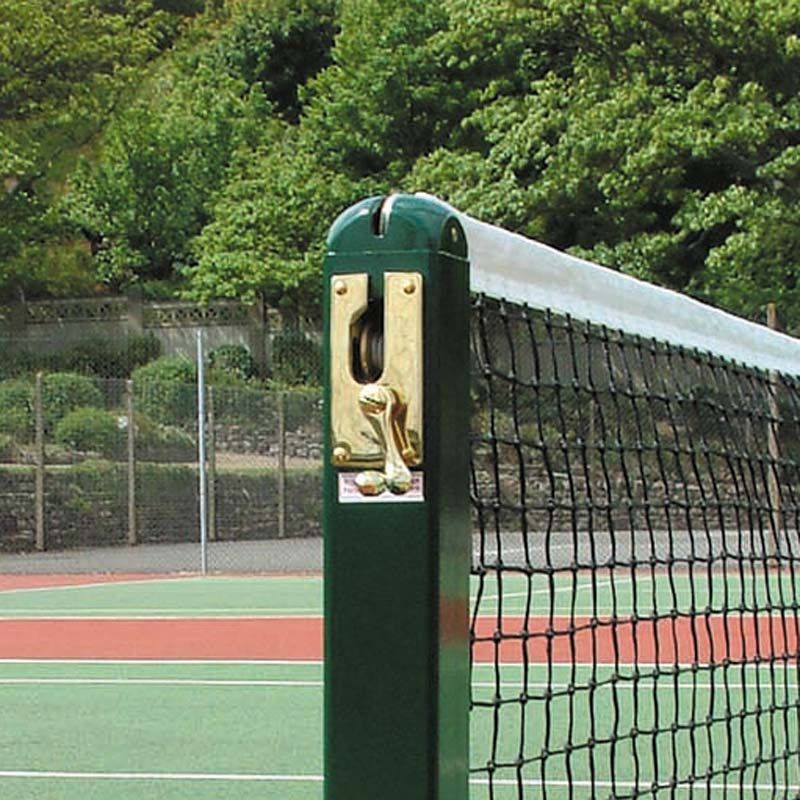

Harrod Sport tennis posts can usually be identified by the manufacturers stickers beneath the winder, see images.

Centre to centre of drill holes on this tennis post winder are 45mm left to right and 105mm top to bottom.

Please measure these dimensions accurately.

Supplied complete with 10mm square pattern handle with fixing screw.

Please note:

The most common UK manufactured tennis posts use winder mechanisms with hole centres of 42mm and 104mm. If this is yours, please see the alternative replacement winder reference: WI100.

These tennis post winder mechanisms require greasing prior to use, and must be kept greased during use. To maintain the winder mechanism, we suggest the use of a light spray grease, such as WD-40 Grease (rather than the more common WD-40 lubricant). With the tube nozzle and careful application you can target it directly onto the spindle and gears without it getting on to the cogs, the headline wire or the tennis net itself.

If uncertain, but you know the make and model of your existing tennis posts and winder, please let us know and we will try to get the best possible match.
